Xinsidai

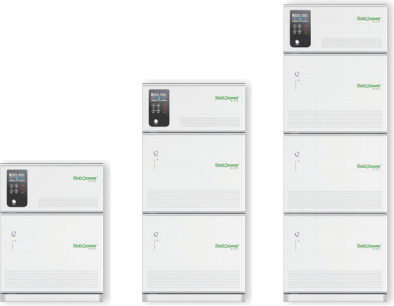

stacked battery
stacked battery
Couldn't load pickup availability
Model BH-51.2V-5KWH
Capacity 5.12KWh 10.24KWh 15.36KWh
Battery Type LiFePO4
Voltage 51.2V
Life Cycle (Times) >6000(25℃)
AC Output
Rated Power 5000W
AC Voltage Regulation(Batt.Mode) 230VAC±5%
Surge power 2 × rated power for 5 seconds
Efficiency(peak)PV to INV 0.97
Efficiency(peak)BAT to INV 0.94
Transfer Time 10ms(for personal computers) ; 20ms(for home appliances)
Wave form Pure Sine Wave
Solar Charger
MAX.PV Array Power 5000W
MPPT Range @ Operating Voltage 120-450VDC
Maximum PV Array Open Circuit Voltage 450VDC
Maximum Charging Current 150A 130A
Maximum Efficiency 0.99
General
Humidity MAX 90%RH
Operating Temperature Charge Temperature: 0℃~55℃ ; Discharge Temperature:-20℃~55℃
Storage Temperature -10℃ to 55℃
Dimension.D×W×H(mm) 548×735×218mm
Net Weight(kgs) 88kg
